MS8607 Temperature+Pressure+Humidity Sensor

The ms8607 sensor platform allows you to use your MS8607 (datasheet, Adafruit) temperature, pressure and humidity sensors with ESPHome. An I²C Bus is required to be set up in your configuration for this sensor to work.

figure.lazy{display:none}

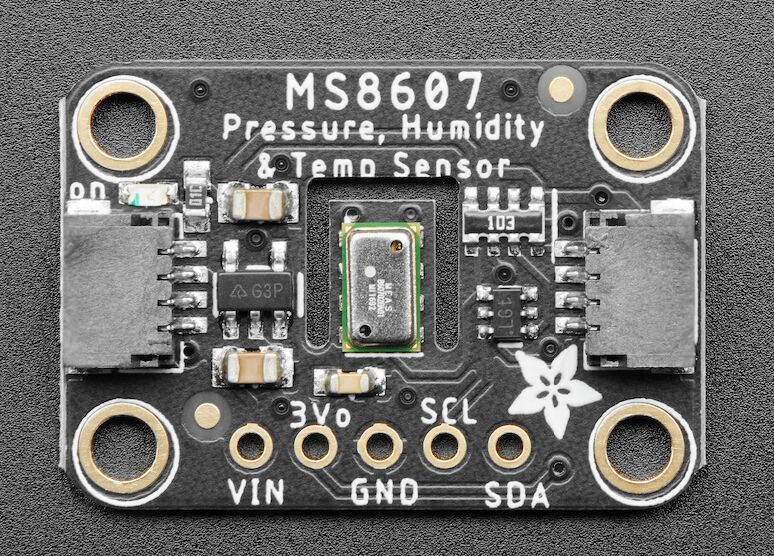

MS8607 Temperature, Pressure & Humidity Sensor. Image by Adafruit_

# Example configuration entry
sensor:
  - platform: ms8607
    temperature:
      name: Temperature
    humidity:
      name: Humidity
    pressure:
      name: Pressure

Configuration variables

temperature (Optional): The information for the temperature sensor. All options from Sensor.
pressure (Optional): The information for the pressure sensor. All options from Sensor.
humidity (Optional): The information for the humidity sensor.
- address (Optional, int): Manually specify the I²C address of the humidity sensor. Defaults to 0x40.
- i2c_id (Optional, ID): Manually specify the ID of the I²C Component if your configuration uses multiple I²C buses. This should match the i2c_id documented below.
- All other options from Sensor.
address (Optional, int): Manually specify the I²C address of the temperature & pressure sensor. Defaults to 0x76.
i2c_id (Optional, ID): Manually specify the ID of the I²C Component if your configuration uses multiple I²C buses. This should match the i2c_id inside of humidity, documented above.
update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

I²C Addresses

The MS8607 digital sensor has two I²C addresses: one for temperature & pressure (0x76 ), and the other for humidity readings (0x40 ). They are attached to the same SCL /SDA pins on the package, so if you need to customize the i2c_id, you need to specify it at the top-level for temperature & humidity, and use the same value inside the humidity configuration block.
